●USB3.0数据传输接口:提供更长时间的快速数据获取(可达小时量级,快速数据获取时间不再受限于内存容量);

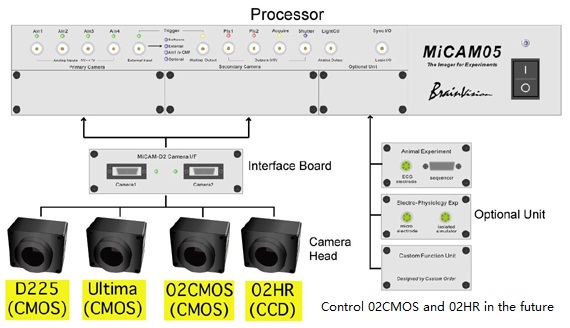

●最多可同步驱动4台不同型号相机:可同时拍摄双波长影像(例如电压敏感染料和钙离子信号);
●实时检测光强和输出功能:可输出多达8个像素的光强变化;
●更多的输入/输出接口:可以更好的兼容外部设备,增加一个扩展槽可以为研究人员提供定制化服务
Model |
MiCAM05 | |||
D225 |
ULTIMA |
02CMOS |
02HR | |
Image Sensor |
Original CMOS |
Original CMOS |
Original CMOS |
1/2 inch CCD |
Shutter Mode |
Global |
Rolling |
Global |
Global |
Active Image |
7.2x7.68mm |
10x10mm |
5.76x4.8mm |
6.4x4.8mm |
Active Pixels |
240x256 |
100x100 |
92x24 |
40x28 |
92x40 |
88x60 | |||
92x80 |
184x124 | |||
188x160 |
376x252 | |||
Pixel Size |
30μmx30μm |
100μmx100μm |
30μmx30μm |
8.4μmx9.8μm |
Maximum Teporal Resolution |
1.0ms |
0.1ms (1 cam) |
0.2ms@92x24 |
1.3ms@40x28 |
0.3ms@92x40 |
2.2ms@88x60 | |||
0.6ms@92x80 |
3.7ms@184x124 | |||
1.2ms@188x160 |
7.0ms@376x252 | |||
Well-Depth |
500,000e- |
1,500,000e- |
450,000e- |
100,000e- |
Number of Slot |
For camera interface board: 2, For optional unit: 1 | |||
A/D converter |
14 bit | |||
Maximum Recordable Frame Number |
Dependent on camera used and image acquisition settings | |||
Recording Mode |
Temporary storage to PC RAM before saving | |||
Buffer Memory |
1GB or 4GB (optional) | |||
Data Transfer |
USB3.0 (for basic functions), USB2.0 (for optional functions) | |||
Inputs |
Analog Signal (4ch), External Trigger Signal, Frame Sync Signal | |||
Outputs |
Trigger Wait Signal (TTL), Stimulation Pulse (TTL, 2ch), | |||
Trigger Mode |
Software, TTL External Input, | |||
Stimulus Output |
Image Acquisition Start, Lighting Control Signal Output, | |||
Camera Mount |
C mount | |||
Standard System Configuration |
Camera Head (1-4), Processor, PC, monitor, data acquisition software | |||
Options |
Image Analysis Software (BV_Ana) | |||
Supported OS |
Windows 7/8.1 64 bit | |||
Power Supply |
AC 85V-240V |
